Web Dashboard for your Nmap Scans

During the discovery phase of a vulnerability assessment or penetration testing it is almost certain that you will utilize the infamous tool nmap.

You may want to pair it with WebMap. WebMap is a web dashboard for your nmap scans. This tool, which is free, can provide you with more management capabilities of your scan results.

Web Dashboard for your Nmap Scans

How to Use WebMap

- Advertisement -

First, create a folder under /tmp:

mkdir /tmp/webmap

Then you may run WebMap on docker using the following command:

docker run -d \
         --name webmap \
         -h webmap \
         -p 8000:8000 \
         -v /tmp/webmap:/opt/xml \
         rev3rse/webmap /run.sh

The container will be built along with its dependencies. You may then access the web interface by navigating to http://localhost:8000

You will need to generate a token to access the web interface by running:

docker exec -ti webmap /root/token

Load your existing nmap XML output files

If you already have some XML files from previous scans you may copy them under /tmp/webmap and those will appear in the dashboard. If you plan to run a new scan and want the XML output file to be available to WebMap directly, you may run:

nmap -sT -A -T4 -oX /tmp/webmap/outfile.xml

WebMap Interface

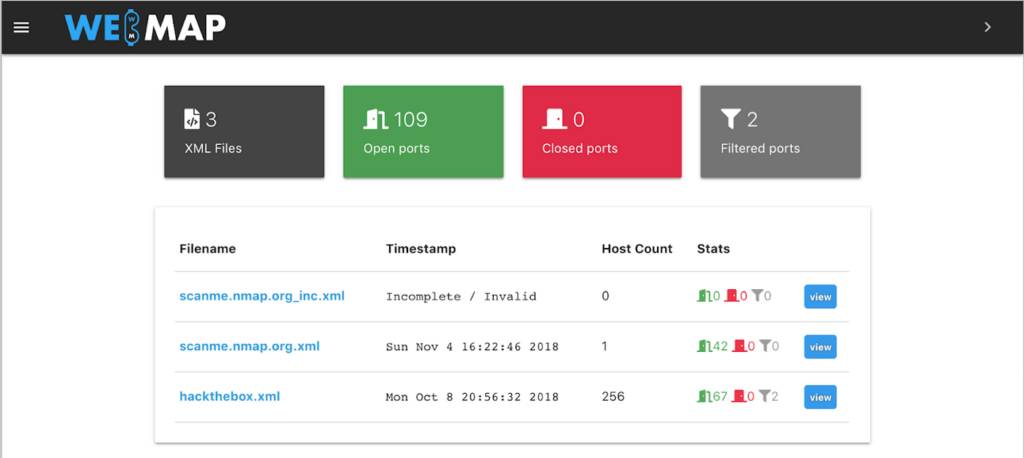

The main dashboard of WebMap will show information like:

  • Start date and time of the nmap scan
  • scan type
  • Port Status (Open, Filtered, Closed)
  • Top Ports and Services

For each host discovered you may add labels like “Vulnerable”, “Critical”, “Warning”, “Checked” and insert any notes for later when you would want to revisit this host.

WebMap gives you the ability to easily generate PDF reports. Simply click the “PDF REPORT” and the PDF will be generated and shown on your browser.

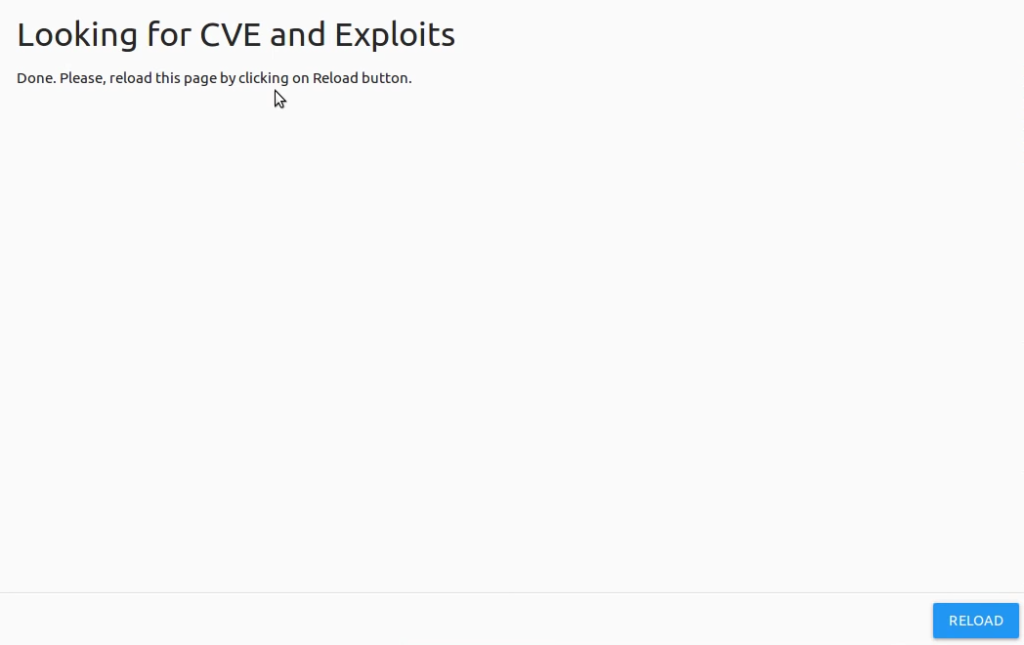

You may also check for CVE and Exploits again, directly through the web interface:

Network View” gives you a graphical representation of the topology discovered during the nmap scan. Something similar to zenmap’s feature.
